Progressive Mold Stamping: How It Works and When to Use It

Progressive mold stamping is a high-efficiency metal forming process used to manufacture repeatable sheet-metal components in medium- to high-volume production.

Instead of producing one feature at a time with separate tools, a progressive mold contains multiple stations inside a single mold set. As metal strip moves through the tooling, each station performs a different operation, such as punching, bending, forming, or trimming.

By the time the strip reaches the final station, the finished component can be separated from the carrier strip.

For manufacturers and OEM buyers, progressive mold stamping can provide high production speed, stable repeatability, and competitive unit costs when the part design and production quantity justify dedicated tooling.

However, it is not the right solution for every metal part.

This article explains how progressive stamping works, its main advantages, design considerations, cost factors, and when it should be considered for a custom manufacturing project.

What Is Progressive Mold Stamping?

Progressive mold stamping is a manufacturing process in which a metal strip passes through a sequence of stations within one mold.

Each station performs a specific operation while the strip remains connected to a carrier until the final stage.

Typical operations may include:

The part does not usually become fully formed in a single station.

Instead, its geometry develops gradually as the strip moves through the mold.

This staged approach allows several operations to be integrated into one automated production cycle.

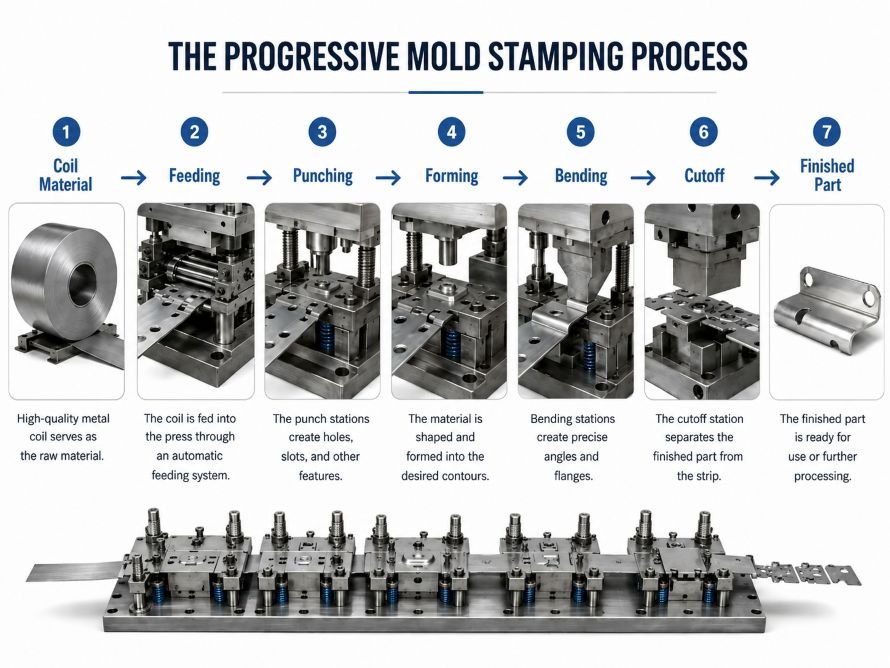

How Does the Progressive Stamping Process Work?

A progressive stamping line generally follows a continuous sequence.

1. Coil or Strip Material Is Fed Into the Press

The process usually begins with sheet metal supplied in coil or strip form.

The material is fed into the stamping press at a controlled pitch.

Accurate feeding is important because every feature produced at later stations depends on the strip arriving at the correct position.

2. The First Stations Create Reference Features

Early stations often punch pilot holes or other reference features.

These help control strip position as the material advances through the tooling.

Good strip guidance is critical because dimensional errors can accumulate if the strip is not positioned correctly at each stage.

3. Multiple Forming Operations Are Performed

As the strip advances, different stations gradually create the required geometry.

For example:

• Station 1: pilot holes
• Station 2: internal cutouts
• Station 3: external trimming
• Station 4: first bend
• Station 5: second forming operation
• Station 6: final shaping
• Station 7: cutoff

The exact sequence depends on:

• Part geometry
• Material type
• Material thickness
• Tolerances
• Forming difficulty
• Required production speed

A well-designed sequence reduces unnecessary material deformation and helps control part accuracy.

4. The Finished Part Is Separated

At the final station, the completed component is normally cut away from the carrier strip.

Depending on the project, the finished part may then move to:

• Collection
• Deburring
• Washing
• Tapping
• Welding
• CNC machining
• Surface treatment
• Inspection
• Assembly

This makes progressive stamping one part of a broader manufacturing process when secondary operations are required.

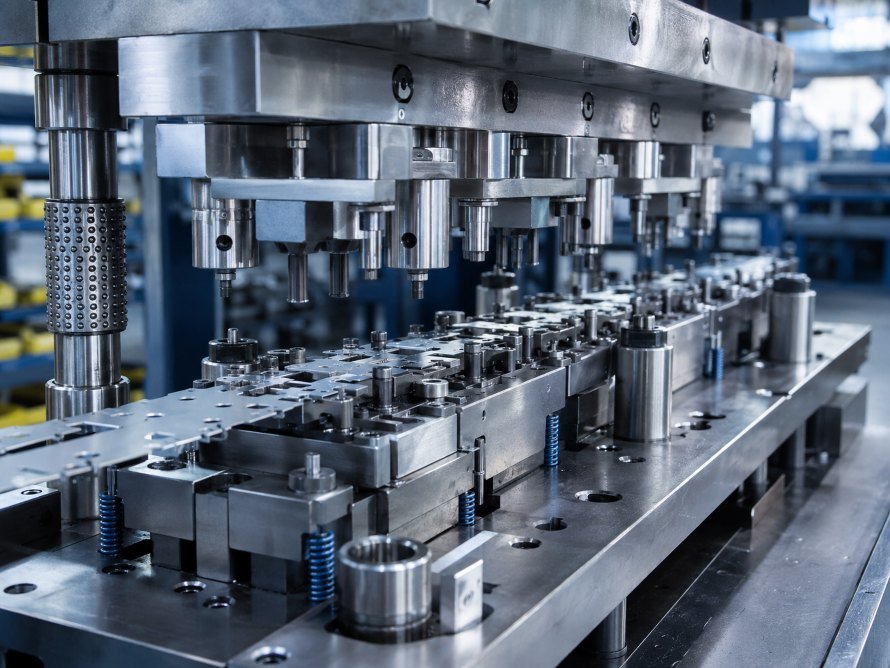

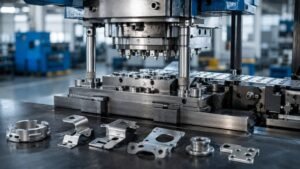

What Does a Progressive Mold Look Like?

A progressive mold is usually more complex than a simple single-operation stamping mold.

It may include:

• Upper and lower mold plates
• Punches
• Mold inserts
• Guide posts
• Pilots
• Strippers
• Springs
• Lifters
• Stock guides
• Sensors
• Cutoff mechanisms

The metal strip travels through the mold along a carefully designed strip layout.

Each component inside the tooling must work together accurately.

This is why progressive stamping capability depends heavily on tooling engineering, not just press capacity.

Poor tooling design can lead to problems such as:

• Inconsistent dimensions
• Excessive burrs
• Strip misfeeding
• Premature tool wear
• Part deformation
• High scrap rates
• Production interruptions

For high-volume programs, the quality of the mold can have a major influence on long-term manufacturing cost. Because progressive Mold performance depends heavily on engineering and planning, supplier capability should be evaluated carefully. Choosing a precision metal stamping manufacturer in China.

Progressive Mold Stamping vs Single-Operation Stamping

Both methods can produce stamped metal parts, but they are suited to different manufacturing situations.

Single-operation tooling can be practical for relatively simple components or lower production requirements.

Progressive tooling becomes more attractive when several operations must be repeated at scale.

What Are the Main Advantages of Progressive Mold Stamping?

High Production Speed

One of the biggest advantages is cycle efficiency.

Because several operations are integrated into one mold, the press can produce components continuously as the strip advances.

This reduces the need to transfer individual parts manually between separate operations.

Stable Repeatability

Once the tooling and feeding system are properly set up, the same sequence is repeated each press cycle.

This supports consistent geometry across large production runs.

Reduced Part Handling

In multi-stage conventional production, partially completed parts may need to be transferred between several machines or mold.

Progressive tooling keeps the component attached to the strip throughout most of the forming sequence.

This can reduce:

• Manual handling
• Work-in-process inventory
• Positioning errors
• Production steps

Multiple Features in One Production System

A progressive mold can potentially combine:

• Holes
• Slots
• Bends
• Tabs
• Embossed features
• Formed geometry
• Cutoff

This integration is one reason progressive stamping can become efficient for complex sheet-metal components.

Lower Unit Cost at Sufficient Volume

Progressive tooling normally involves a higher initial investment.

However, once the production volume becomes large enough, the high production efficiency can reduce the cost per component.

The economic benefit therefore depends heavily on expected production quantity.

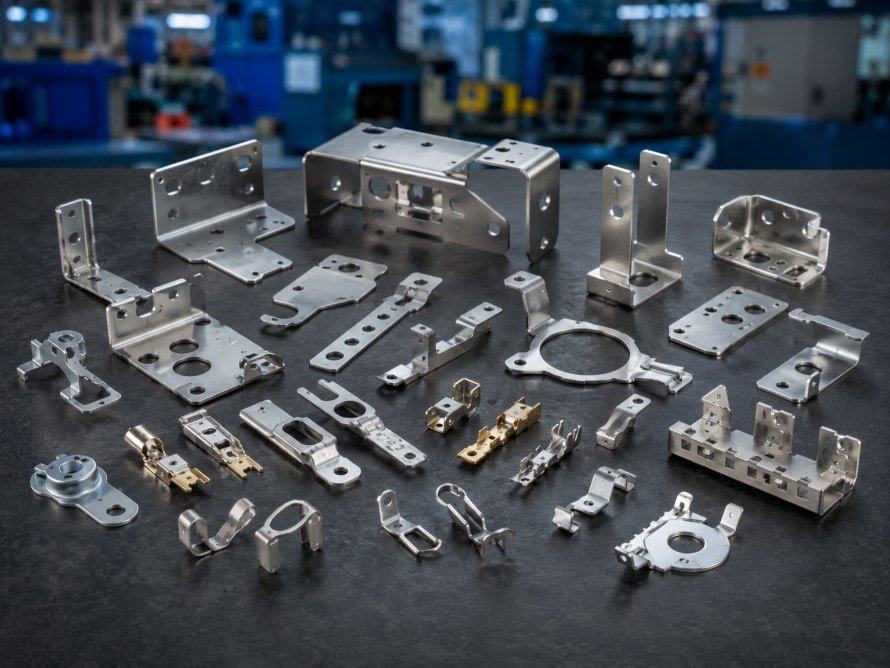

What Types of Parts Are Suitable for Progressive Mold Stamping?

Progressive stamping works particularly well for parts that:

• Are produced from sheet metal
• Require repeat production
• Have multiple punched or formed features
• Can remain connected to a carrier strip during production
• Require medium- or high-volume manufacturing
• Have geometry that can be formed gradually through multiple stations

Typical applications may include:

The process can also be used for small precision components where repeatability and production speed are important.

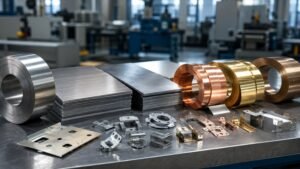

What Materials Can Be Used in Progressive Stamping?

Many sheet metals can be used, depending on the geometry and performance requirements of the finished part.

Common materials include:

Material behavior must be considered when designing each forming station.

Important factors include:

• Tensile strength
• Hardness
• Ductility
• Grain direction
• Springback
• Surface condition
• Material thickness

The same part geometry may require different tooling strategies when produced from different materials.

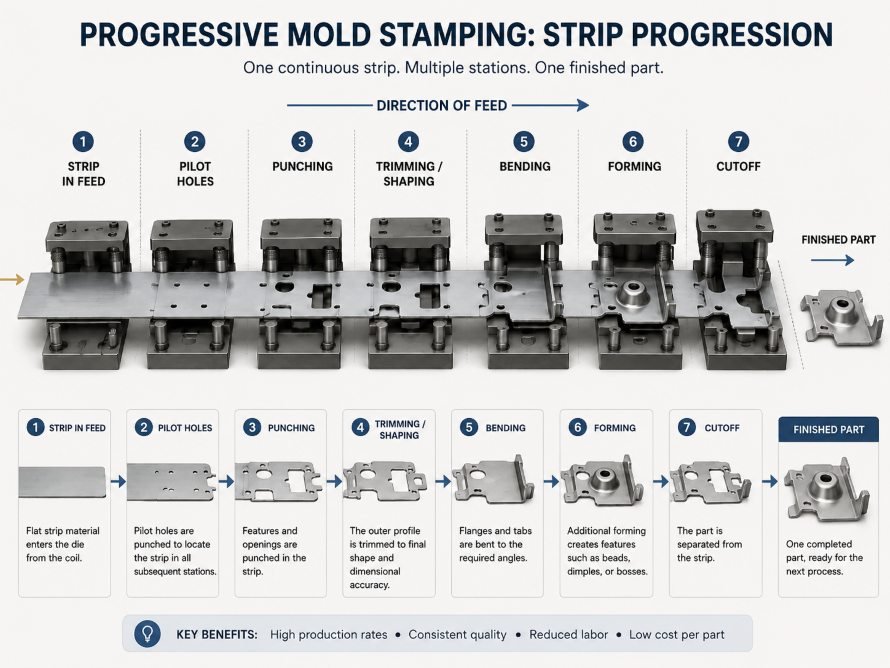

Why Is Strip Layout Important?

The strip layout defines how the part moves through the progressive mold.

It determines:

• Station sequence
• Material pitch
• Carrier design
• Part orientation
• Scrap areas
• Material utilization

A poorly optimized strip layout can waste material or create unstable forming conditions.

For high-volume production, material utilization becomes especially important because raw material can represent a significant portion of total part cost.

For example, a small improvement in material usage may appear insignificant on one component.

But across hundreds of thousands or millions of parts, that improvement can create substantial savings.

Therefore, strip layout optimization is both an engineering and cost-control consideration.

What Design Factors Should Engineers Consider?

Designing a part for progressive stamping requires more than checking whether it can physically fit inside a mold.

Several factors should be reviewed during DFM.

Hole and Edge Distance

Holes or slots located very close to part edges may cause distortion or tooling difficulties.

Bend Radius

Very small bend radii can increase the risk of cracking, especially with harder materials.

Springback

Some metals partially return toward their original shape after forming.

Tooling may need compensation to achieve the required final angle.

Feature Sequence

The order of punching and forming operations can affect dimensional stability.

Some features must be produced before bending, while others may need to be completed after forming.

Tolerances

Not every dimension requires the same tolerance.

Applying unnecessarily tight tolerances to non-critical features can increase tooling and inspection costs.

Burr Direction

Burr orientation can matter for parts that:

• Slide against another component
• Contact users
• Carry electrical current
• Require cosmetic surfaces
• Enter an assembly

The required burr direction should be considered when developing the stamping sequence.

What Factors Affect Progressive Mold Stamping Cost?

Progressive stamping cost can be divided into two major categories:

initial tooling cost and production cost.

The lowest tooling quotation is not always the lowest total manufacturing cost.

For long-running programs, buyers should also consider:

• Expected tool life
• Maintenance requirements
• Spare inserts
• Production stability
• Scrap rate
• Cycle time
• Tool repair capability

A more robust tool may cost more initially but perform better over the life of the project.

When Does Progressive Mold Stamping Make Economic Sense?

Progressive stamping is most attractive when the production volume is high enough to justify the tooling investment.

A simplified comparison looks like this:

There is no universal quantity threshold because the break-even point depends on:

• Tool cost
• Part complexity
• Alternative manufacturing cost
• Material
• Cycle time
• Annual quantity
• Expected product life

For this reason, buyers should provide both the immediate order quantity and expected annual demand during the quotation stage.

Progressive Mold Stamping vs CNC Machining

For some projects, buyers may be deciding between stamping and CNC machining.

The processes have very different cost structures.

CNC machining is often useful during prototype development.

Once the design becomes stable and demand increases, a component may become suitable for stamping.

This is one reason manufacturers that can support both processes can help customers transition from prototype to production.

How Is Quality Controlled in Progressive Stamping?

High-speed production requires effective quality control.

Inspection may include:

• Dimensional measurement
• Hole position inspection
• Bend angle inspection
• Flatness checks
• Surface inspection
• Burr inspection
• Material verification
• Coating or plating inspection

However, quality control should also focus on the process itself.

Progressive mold may use sensors to detect conditions such as:

• Misfeeds
• Part presence
• Strip position
• Material feeding issues

Tool wear must also be monitored because worn punches or mold inserts can gradually change part quality.

Preventive maintenance can help reduce unexpected production interruptions and quality problems.

What Should You Include in a Progressive Stamping RFQ?

Providing complete information allows a manufacturer to evaluate whether progressive tooling is appropriate.

If annual demand is uncertain, it is still helpful to provide an estimated range.

The manufacturer can then compare different tooling and production approaches.

How to Choose a Progressive Mold Stamping Manufacturer

Progressive stamping depends heavily on tooling expertise.

When evaluating a supplier, buyers should consider more than machine size or press tonnage.

Important capabilities include:

• In-house or controlled mold design
• Tooling manufacturing capability
• Strip-layout engineering
• Material experience
• Press and feeder capability
• Tool maintenance capability
• Quality inspection
• Secondary processing
• Engineering communication
• Production capacity

A strong supplier should be able to explain why a specific stamping sequence is recommended and identify potential manufacturing risks before tooling begins.

Progressive Mold Stamping at Xiyu Hardware

Dongguan Xiyu Hardware & Electronic Co., Ltd. provides custom precision hardware manufacturing services for OEM and ODM projects.

The company’s capabilities include:

• Metal stamping mold design and manufacturing
• Precision metal stamping
• CNC machining
• CNC turning
• Sheet metal fabrication
• Secondary hardware processing

For suitable high-volume components, progressive tooling can be evaluated together with material selection, part geometry, tolerances, and production quantities.

For projects that are still in the prototype stage, alternative processes such as CNC machining or sheet metal fabrication may also be considered before investing in production tooling.

This multi-process capability allows the manufacturing approach to be selected according to the actual requirements of the component.

Frequently Asked Questions About Progressive Mold Stamping

What is the main difference between progressive stamping and regular stamping?

Progressive stamping integrates several operations into one multi-station mold while the metal strip advances automatically through the tooling.

Regular or single-operation stamping may perform one main operation at a time.

Is progressive mold stamping only for very high volumes?

It is most attractive for medium- to high-volume production, but the exact break-even quantity depends on tooling cost, part complexity, alternative manufacturing methods, and expected product life.

Can progressive stamping produce tight-tolerance parts?

Yes, depending on the material, geometry, tooling design, and specific dimensions involved.

Tolerance requirements should be evaluated feature by feature rather than applying unnecessarily tight tolerances to the entire part.

Are progressive mold expensive?

They usually require a higher initial investment than simple stamping tools because several operations are integrated into one mold.

However, the higher production efficiency can reduce unit costs over larger production volumes.

Can a progressive stamped part still require CNC machining?

Yes.

Some projects combine stamping with CNC machining, tapping, welding, surface treatment, or other secondary processes when specific features cannot be produced efficiently inside the stamping mold.

Need Progressive Mold Stamping for a Custom Metal Part?

If your component requires repeat production and includes multiple punched, bent, or formed features, progressive mold stamping may be worth evaluating.

Send us your:

• 2D engineering drawing
• 3D CAD file
• Material specification
• Material thickness
• Critical tolerances
• Surface treatment requirements
• Batch quantity
• Estimated annual demand

Xiyu Hardware can review the project and evaluate whether progressive mold stamping or another manufacturing process is more suitable.

Contact us to discuss your custom metal stamping project.
